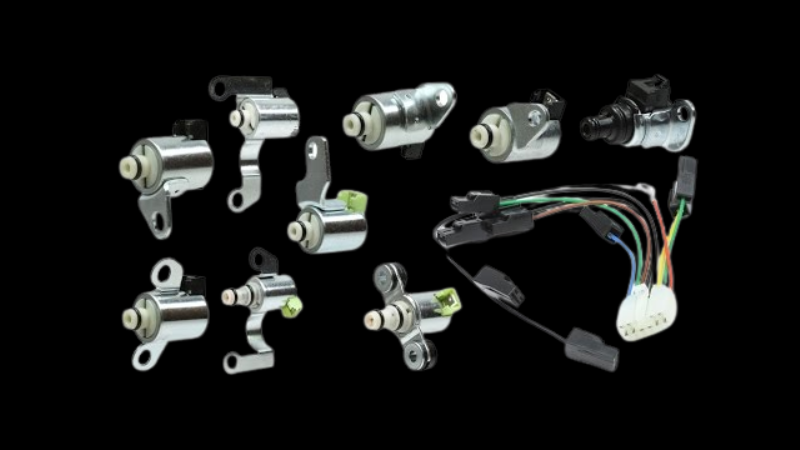

The pressure control solenoid manages line pressure for smooth shifting. A short circuit prevents correct pressure regulation, leading to harsh shifts or limp mode.
1. Shorted Pressure Control Solenoid A (internal electrical failure).
2. Wiring harness shorted to ground or battery voltage.
3. Damaged/loose connectors at solenoid or TCM.
4. Faulty TCM/PCM driver circuit.
5. In rare cases: valve body internal short.
1. Transmission stuck in limp mode (2nd/3rd gear only).
2. Harsh, delayed, or erratic shifting.
3. Check Engine Light (CEL) / Transmission Warning Light.
4. Transmission overheating (if driven in limp mode for long).
1. Check ATF fluid level/condition.
2. Inspect wiring & connectors at solenoid → look for melted, pinched, or burnt wires.
3. Measure solenoid resistance with a multimeter → if near 0 ohms, solenoid is shorted.
4. Check continuity from solenoid to TCM → identify short to ground/power.
5. If wiring & solenoid test fine → suspect TCM fault.
1. Replace Pressure Control Solenoid A if shorted.
2. Repair/replace damaged wiring harness or connectors.
3. Flush & refill ATF fluid if contaminated.
4. If integrated, replace valve body assembly.
5. In rare cases → replace/reprogram TCM/PCM.
